Aerolab LoCamp
| LoCamp | |
|---|---|
 | |

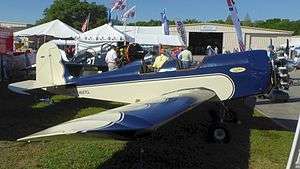

| Aerolab LoCamp N257CL | |
| Role | Amateur-built aircraft |
| National origin | Italy |
| Manufacturer | Aerolab SRL |
| Status | In production (2012) |
|
| |
The Aerolab LoCamp is an Italian amateur-built aircraft, designed and produced by Aerolab SRL of Gallarate. The aircraft is supplied as a kit for amateur construction, although the company plans to also certify the aircraft to JAR-VLA as well as produce a light-sport aircraft category version.[1][2]
Design and development
The LoCamp is intended to resemble a 1930s style light aircraft. It features a cantilever low-wing, a two-seats-in-tandem open cockpit with polycarbonate windscreens, fixed conventional landing gear and a single engine in tractor configuration.[1][3]
The aircraft fuselage is made from welded steel tubing, with the wing built from wood or optionally aluminum sheet and its flying surfaces covered in doped aircraft fabric. Its 9.10 m (29.9 ft) span wing employs a NACA 4416 airfoil, has an area of 13.5 m2 (145 sq ft) and mounts flaps. The standard engine available is the 110 hp (82 kW) Rotec R2800 four-stroke radial engine, although the 65 hp (48 kW) Walter Mikron MIIIC was under evaluation by the manufacturer.[1][3]
Variants
- LoCamp
- Low wing monoplane model[1]
- HiCamp
- Parasol wing model, that uses the same fuselage as the LoCamp model[1][4]
- BiCamp
- Biplane model, that uses the same fuselage as the LoCamp model[1][5]
Specifications (LoCamp)
Data from Bayerl and Aerolab[1][3]
General characteristics
- Crew: one
- Capacity: one passenger
- Wingspan: 9.10 m (29 ft 10 in)
- Wing area: 13.5 m2 (145 sq ft)
- Airfoil: NACA 4416
- Empty weight: 385 kg (849 lb)
- Gross weight: 599 kg (1,321 lb)
- Fuel capacity: 120 litres (26 imp gal; 32 US gal)
- Powerplant: 1 × Rotec R2800 seven cylinder, air-cooled, four stroke radial engine, 82 kW (110 hp)
- Propellers: 2-bladed wooden, 1.83 m (6 ft 0 in) diameter
Performance
- Maximum speed: 195 km/h (121 mph; 105 kn)
- Cruising speed: 171 km/h (106 mph; 92 kn)
- Stall speed: 67 km/h (42 mph; 36 kn) with full flaps
- Never exceed speed: 213 km/h (132 mph; 115 kn)
- Range: 732 km; 455 mi (395 nmi)
- g limits: +4.0/-2.0
- Rate of climb: 4 m/s (790 ft/min)
- Wing loading: 44.4 kg/m2 (9.1 lb/sq ft)
