Alvarez Polliwagen
| Polliwagen | |
|---|---|
 | |
| Role | Homebuilt aircraft |
| Designer | Joseph Alvarez |
|
| |

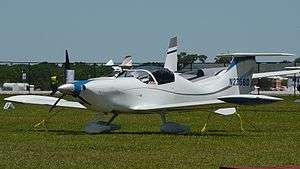

The Alverez Polliwagen is an 1970s homebuilt aircraft. The aircraft has a combination of many high performance features not typically found in a Volkswagen air-cooled engine-powered homebuilt.[1]
Design and development
The Polliwagen is a low wing, side-by-side configuration, T tailed, retractable tricycle landing gear equipped aircraft with tip tanks. The aircraft was developed and tested with a one quarter scale radio controlled model.[2] Ailerons and flaps are full span. The fuselage is built from composites with foam cores. The aircraft's engine is configured with a turbocharger and constant speed propeller.[3] Entrance is through a swing up canopy.[4]
Specifications (Polliwagen)
Data from Plane and Pilot
General characteristics
- Crew: 1
- Capacity: 1 passenger
- Length: 16 ft (4.9 m)
- Wingspan: 26 ft (7.9 m)
- Airfoil: Wortmann FX-67-K-150
- Empty weight: 600 lb (272 kg)
- Gross weight: 1,250 lb (567 kg)
- Fuel capacity: 19 U.S. gallons (72 L; 16 imp gal)
- Powerplant: 1 × Revmaster R-2100 turbocharged Volkswagen air-cooled engine horizontally opposed piston, 78 hp (58 kW)
- Propellers: 2-bladed two-position constant-speed Maloof metal propeller
Performance
- Maximum speed: 174 kn; 322 km/h (200 mph)
- Cruise speed: 156 kn; 290 km/h (180 mph)
- Stall speed: 33 kn; 61 km/h (38 mph)
- Range: 1,000 nmi (1,151 mi; 1,852 km)
- Service ceiling: 28,800 ft (8,800 m)
See also
- Aircraft of comparable role, configuration and era
References
- ↑ David E. Pullmann. Acceptance of Mediocrity. p. 197.
- ↑ "none". Flight International. 22 August 1977.
- ↑ "Polliwagen". Retrieved 2 December 2013.
- ↑ "none". Popular Mechanics: 77. January 1980.
