GippsAero GA10
| GA10 Airvan | |
|---|---|
 | |

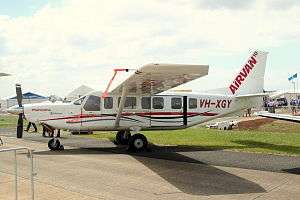

| GA10 prototype | |
| Role | Utility aircraft/Transport |
| National origin | Australia |
| Manufacturer | GippsAero |
| First flight | 1 May 2012 |
| Produced | 2012-present |
| Developed from | Gippsland GA8 |
The GippsAero GA10 Airvan is a ten-seat, turbo prop, single-engined utility aircraft currently being developed by GippsAero (formerly Gippsland Aeronautics) of Victoria, Australia.[1]
Design and development
After successful development of the 8-seat GA8 Airvan piston-engined aircraft, the design has been stretched and re-engined with a turboprop engine to increase seating and payload capacity, resulting in the GA10.[2] With many piston-engined GA-8 aircraft being operated in remote areas, the JetA/JetA1-powered GA-10 is intended to appeal to general aviation customers.
The GA10 retains the aerodynamic design of the GA8 and the intent is to retain as many current production parts as possible.[3] Anticipated performance figures have not yet been released, but a design requirement is for a five-hour endurance with eight occupants (including pilot), and a maximum fuel load of 550 litres.[3] Similarly to the GA8, a STOL kit will be developed for the GA10.
Its 20-minute first flight was completed in May 2012.[4] In mid-2015, the aircraft was planned to be certified in 2015,[5] but later in the year no schedule was claimed.[6]
Specifications
Data from Airvan 10 Brochure[7]
General characteristics
- Crew: 1
- Capacity: 9 passengers or 635 kg freight (with full fuel)
- Length: 33 ft 6 in (10.3 m)
- Wingspan: 40 ft 7 in (12.4 m)
- Height: 12 ft 9 in (3.8 m)
- Empty weight: 2475[8] lb ( kg)
- Gross weight: 4,750 lb (2,155 kg)
- Powerplant: 1 × Rolls-Royce 250-B17F/2 turboprop engine, 2,030 rpm Hartzell HC-D3F-7H 3-Blade Propeller, 450 hp ( kW)
Performance
- Service ceiling: 20,000 ft (6,096 m)
- Rate of climb: 1,000 ft/min (5.8 m/s)
- Takeoff Distance (to 50 ft) : 1,600 ft (488 m)
- Ground Roll : 1,100 ft (335 m)
- fuel burn : 24 gph (92 ltr/hr)
- max speed : 157 kts
- cruise speed : 145 kts (240 km/h)
- range : 550 nm (1hr 1FR reserve)
Cabin
- Cabin Height: : 45 in (1.1 m)
- Cabin Width : 50 in (1.3 m)
- Cabin Length (no cargo bin): 16 ft 1 in (4.9 m)
- Cabin Door : 50 in (1.3 m)
- Main Cargo Area Internal Volume : 164 ft3 (4.43 m3)
- Cabin Shelf : 18 ft3 (0.5 m3)
- Aft Locker : 13 ft3 (0.4 m3)
- Cargo Pod : 25 ft3 (0.7 m3)
Weights
- maximum useful load : 2,300 lb (1,043 kg)
- Optional Cargo Pod Capacity : 600 lb (272 kg)
- Fuel Capacity : 153 U.S. gal (580 ltr) JetA-1
- Full fuel Payload : 1,400 lb (635 kg)
