Pilatus P-3
| P-3 | |
|---|---|
 | |
| Role | Trainer aircraft |
| Manufacturer | Pilatus Aircraft |
| First flight | 3 September 1953 |
| Introduction | 1956 |
| Status | in use in private hands |
| Primary users | Swiss Air Force Brazilian Navy |
| Number built | 79 |
| Developed into | Pilatus PC-7 |
The Pilatus P-3 was a military training aircraft built by Pilatus Aircraft of Switzerland.
Design and development
The Pilatus P-3 was designed for primary and advanced training (including night flying, aerobatics and instrument flying). The military version was designated P-3-03. It was of all-metal construction with a retractable tricycle undercarriage and tandem seating. There was provision for underwing racks for light practice bombs or rockets and a machine gun in a pod below the port wing.
Operational history
The first prototype was built in 1953 and flew on 3 September, the same year.[1] The Swiss Air Force received 72 examples of this aircraft while the Brazilian Navy acquired six. The Swiss Air Force used the P-3 as a training aircraft until 1983, although it continued to be used as a liaison aircraft for another decade. In 1993–1995, 65 ex-Swiss Air Force aircraft were sold on the private market.[2]
Operators
.svg.png){kind=small}
- Swiss Air Force
- P-3 Flyers

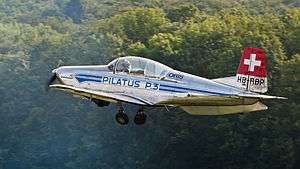

The P-3 Flyers is an independent air display team based in Switzerland.[3][4] Formed in 1996. it currently operates five ex-Swiss Air Force P3 aircraft.[5][6]
Specifications (Pilatus P-3-03)
Data from Jane's All The World's Aircraft 1956–57[1]
General characteristics
- Crew: Two
- Length: 8.75 m (28 ft 8 in)
- Wingspan: 10.40 m (34 ft 1 in)
- Height: 3.05 m (10 ft 0 in)
- Wing area: 16.55 m2 (178.1 sq ft)
- Aspect ratio: 6.55:1
- Empty weight: 1,090 kg (2,403 lb)
- Gross weight: 1,500 kg (3,307 lb)
- Fuel capacity: 170 litres (37 imp gal; 45 US gal)
- Powerplant: 1 × Lycoming GO-435-C2-A2 six cylinder, air-cooled, four stroke, horizontally opposed aircraft engine, 180 kW (240 hp)
Performance
- Maximum speed: 310 km/h (193 mph; 167 kn)
- Cruising speed: 255 km/h (158 mph; 138 kn) (econ cruise)
- Service ceiling: 5,500 m (18,045 ft)
- Rate of climb: 7.00 m/s (1,378 ft/min)
- Wing loading: 90.63 kg/m2 (18.56 lb/sq ft)
- Power/mass: 0.12 kW/kg (0.072 hp/lb)
