SNCB Class 18 (Siemens)

HLE 18, HLE 19

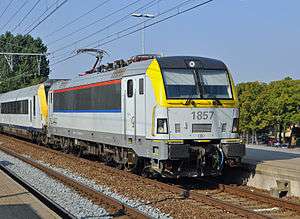

1857 at Brugge-Sint-Pieters railway station.
Type and origin
Power type Electric
Builder Siemens
Model EuroSprinter ES60U3
Build date first 60 : 2008-2010[1]
second 60 : 2010-2011[1]
Specifications
UIC class Bo'Bo'
Gauge 1,435 mm (4 ft 8 1⁄2 in)
Wheel diameter 1,250 mm (49 in)
Length 19,580 mm (64 ft 3 in)
Loco weight 88 t
Electric system(s) 3,000 V DC
1,500 V DC
25 kV 50 Hz AC
Current collection 2 Pantographs (3 kV or 25 kV 50 Hz)
Loco brake disc brakes, rheostatic/regenerative electrical braking
Train brakes pneumatic
Safety systems ETCS 1 and 2, Memor, KVB, TBL1, TBL1+, TBL2[2]
Performance figures
Maximum speed 200 km/h (120 mph)
Power output 25kV AC, or 3kV continuous 5 MW[2]
peak 6MW for 20min.[2]
1.5kV 2.4[2]/2.5[3]/3MW[4]
Tractive effort 300 kN @ 0 km/h[2]
250 kN @ 72 km/h[2]
Loco brakeforce 150 kN max[3]
regenerative braking power 2.4 MW under 3 kV, 5MW under 25kV AC and 3kV DC.[2] rheostatic braking power 2.6MW under 3kV or 1.5kV DC.[2]
Career
Operators SNCB/NMBS
Class HLE 18 & 19[2][5]
Number in class 120[6]
Numbers 1801-1896, 1901-1924 [6]
Delivered 2009-2012
Technical information :[3][4] except where noted
For the original Class 18 built in 1973/4 by Alsthom see SNCB Class 18 (Alsthom)

The SNCB/NMBS HLE 18 (Siemens class ES60U3) are a series of four axle Bo'Bo' multivoltage electric Siemens EuroSprinter locomotives ordered in two batches of sixty in 2006 and 2008.

The locomotives were supplied for use by SNCB/NMBS (Belgian national railways) on passenger services.

96 of the class form the HLE 18 class, 24 units fitted with an automatic central coupler form the SNCB HLE 19 class.[5]

History

An order for 60 units, value €211 million, was placed in December 2006 for delivery between January 2009 and June 2010.[7][8][9] In December 2008, an option to order 60 more locomotives was exercised for an amount of € 222M, for delivery between June 2010 and April 2012.[10]

The locomotives were ordered to replace SNCB Class 13 and Class 27 locomotives on passenger intercity services.[11]

Locomotive number 1860 was officially presented at InnoTrans in 2008.[3] The first unit, number 1801 was transferred to the Velim railway test circuit for testing in December 2008.[12]

On March 3, 2009, the first unit (roadnumber 1802) was officially delivered to SNCB/NMBS for test and homologation purpose.[13] Homologation issues delayed commercial introduction (originally planned for the summer timeschedule - May 2011),[14] as a result Siemens was obliged to pay the maximum amount of penalties (€ 21.12 million).[15]

In July 2011 the first revenue earning Intercity services ran, under temporary approval.[5] The type received homologation certification for use in Belgium in late 2011.[16]
