Vertical Hummingbird

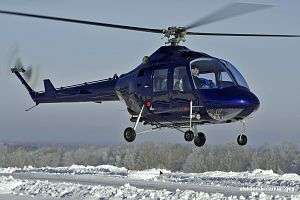

| Hummingbird | |
|---|---|
.jpg) | |
| Role | Helicopter |
| National origin | United States |
| Manufacturer | Vertical Aviation Technologies |
| Introduction | 1991 |
| Status | In production (2013) |
| Unit cost |
US$138,600 (2011) |
| Developed from | Sikorsky S-52 |
The Vertical Hummingbird is an American helicopter, produced by Vertical Aviation Technologies of Sanford, Florida that was introduced in 1991. The aircraft is supplied as a kit for amateur construction.[1][2]
Design and development
The Hummingbird is a development of the certified Sikorsky S-52 that first flew in 1947, adapted to kit form. The aircraft features a single main rotor, a four seat enclosed cabin, quadracycle landing gear and a choice of two powerplants.[1] The prototype was converted by Vertical Aviation Technologies from a Sikorsky S-52-3.[3]
The Hummingbird fuselage is made from riveted aluminum sheet. The nose section is adapted from the Bell 206. Its 33 ft (10.1 m) diameter fully articulated three-bladed main rotor employs a NACA 0015 airfoil. The two-bladed tail rotor has a diameter of 5.75 ft (1.8 m). The aircraft has an empty weight of 1,850 lb (839 kg) and a gross weight of 2,800 lb (1,270 kg), giving a useful load of 950 lb (431 kg). With full fuel of 57 U.S. gallons (220 L; 47 imp gal) the payload is 608 lb (276 kg).[1][4][5]
Variants
- VAT S-52-3
- Prototype of the Hummingbird family, converted from an original Sikorsky S-52-3.[3]
- Hummingbird 260L.
- Version powered by a six cylinder, air-cooled, four-stroke, dual-ignition 265 hp (198 kW) Lycoming IVO-435 engine[5]
- Hummingbird 300LS
- Version powered by an eight cylinder, liquid-cooled, four-stroke, single-ignition 325 hp (242 kW) General Motors LS7 V-8 automotive conversion engine, derated to 280 hp (209 kW)[6]
Specifications (Hummingbird 260L)
Data from Bayerl and Vertical Aviation[1][5]
General characteristics
- Crew: one
- Capacity: three passengers
- Width: 5 ft 0 in (1.52 m)
- Height: 8 ft 7 in (2.62 m)
- Airfoil: NACA 0015
- Empty weight: 1,850 lb (839 kg)
- Gross weight: 2,800 lb (1,270 kg)
- Fuel capacity: 57 U.S. gallons (220 L; 47 imp gal)
- Powerplant: 1 × Lycoming IVO-435 six cylinder, air-cooled, four stroke aircraft engine, 265 hp (198 kW)
- Main rotor diameter: 33 ft 0 in (10.06 m)
Performance
- Cruise speed: 100 mph (87 kn; 161 km/h)
- Never exceed speed: 120 mph (104 kn; 193 km/h)
- Range: 375 mi (326 nmi; 604 km)
- Service ceiling: 14,000 ft (4,267 m)
- Rate of climb: 950 ft/min (4.8 m/s) at 2,800 lb (1,270 kg)
